Feature:
-
Chipset: XMOS XU316+ESS 9039Q2M+QCC3031+LME49720
-
Maximum Sampling Rate
USB:PCM 32bit/768kHz; DSD512
OPT/COA: PCM 24bit/192kHz
HDMI: PCM 24bit/192kHz;
Bluetooth: PCM 24bit/48kHz;
-
Output Level: XLR: 5Vrms/RCA: 2.5Vrms
-
Input: USB, HDMI (ARC), Coaxial, Optical, Bluetooth
-
Output: XLR, RCA
-
SNR: 126dB
-
THD+N: <0.00008%
-
Dynamic Range: 126dB
-
Noise Floor: ≤2μV
-
Frequency Response: 20Hz-20kHz (±0.1dB)
-
Bluetooth Version: 5.0
-
Bluetooth Connection Distance: ≥13m
-
Bluetooth Transmission Audio Format: SBC, AAC, aptX, aptX HD
-
Input Voltage and Current: DC 12V 1.5A
-
USB Compatible Devices:
-
Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to subsequent instructions for details)
Mac OS X, Linux (No driver required)

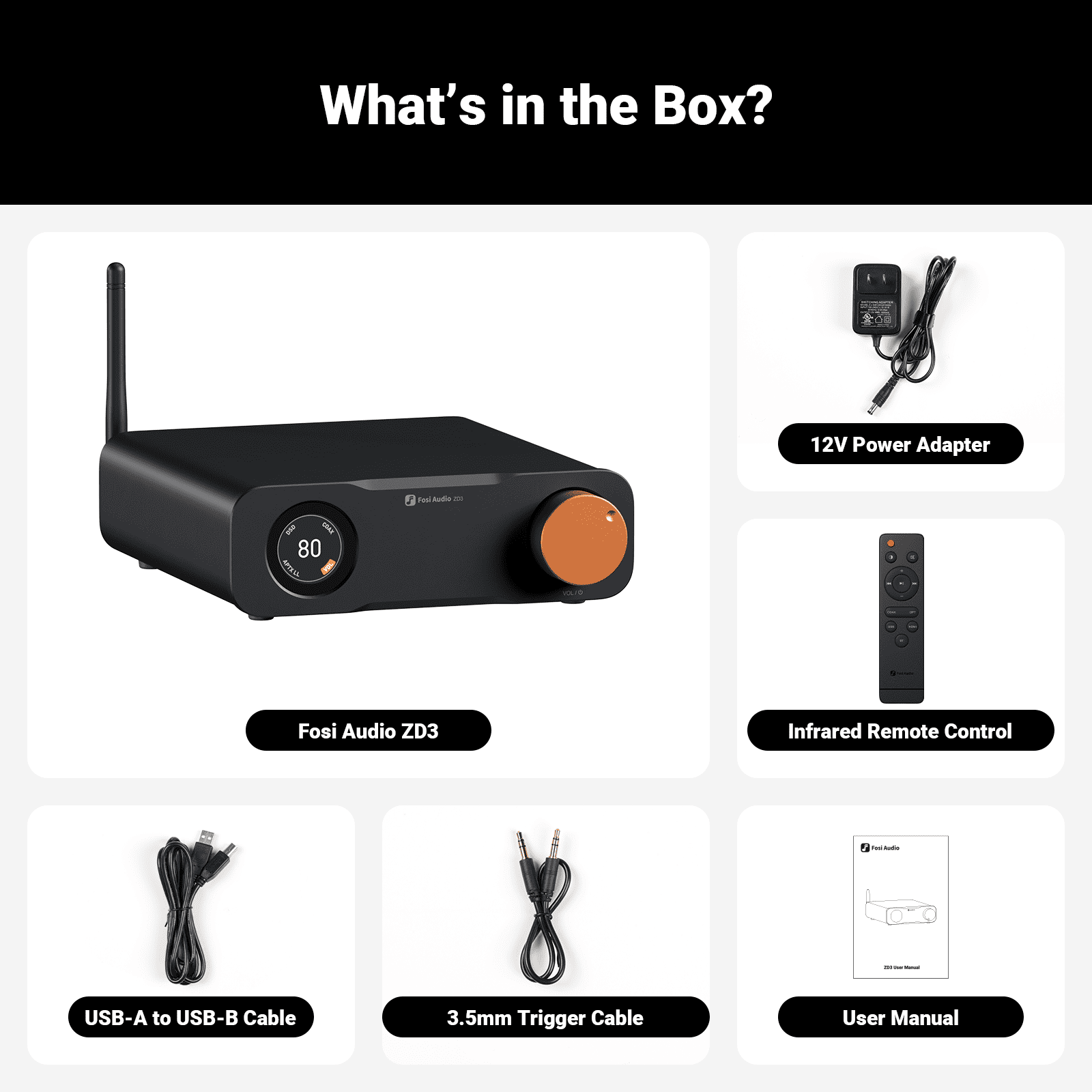

Package include
-
ZD3*1
-
USB-A to USB-B Cable*1
-
12V Power Adapter*1
-
Bluetooth Antenna*1
-
12V Trigger Cable*1
-
Infrared Remote*1
-
User Manual*1
Specifications

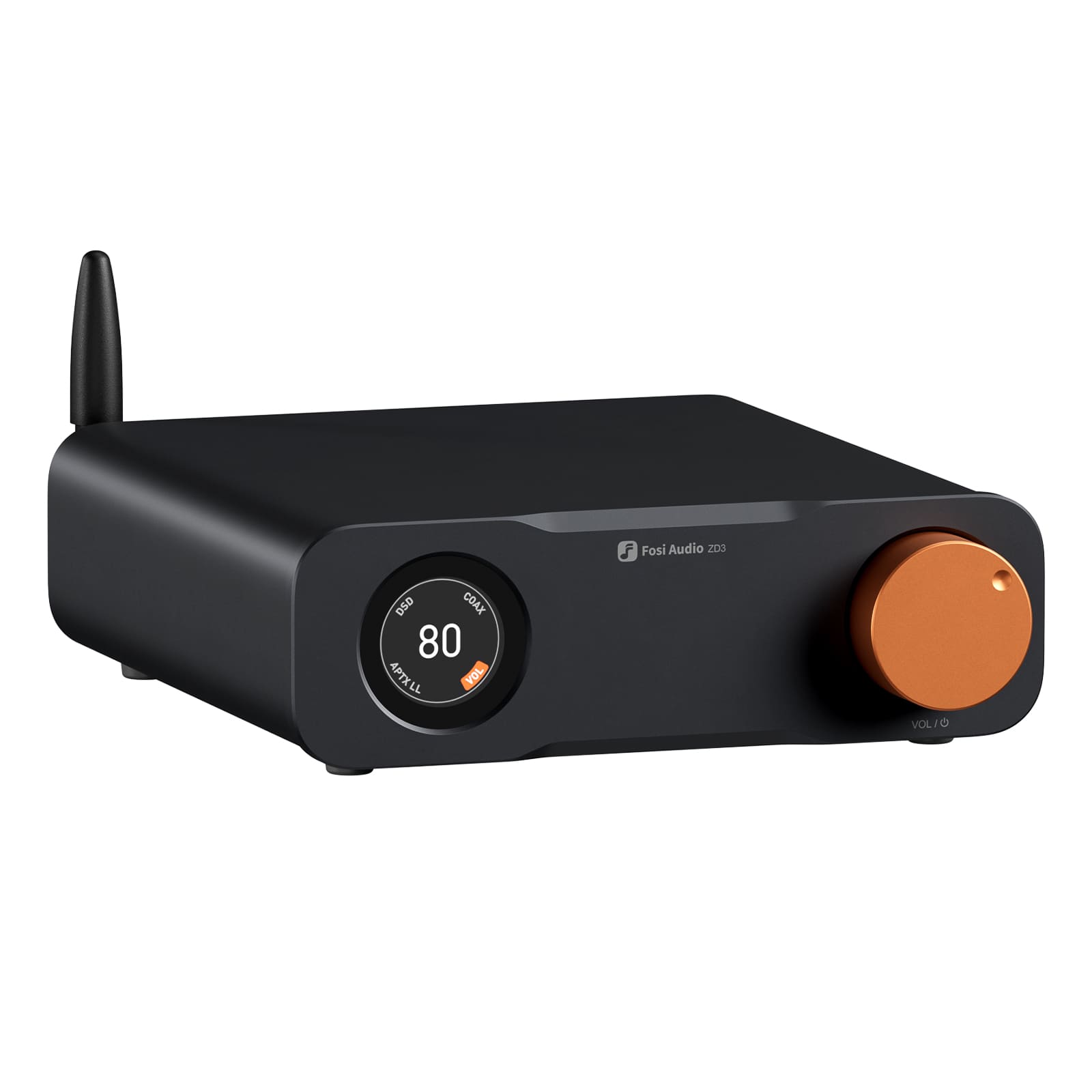

- Flagship Desktop DAC: A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio's first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound
- Premium Chipset: The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth

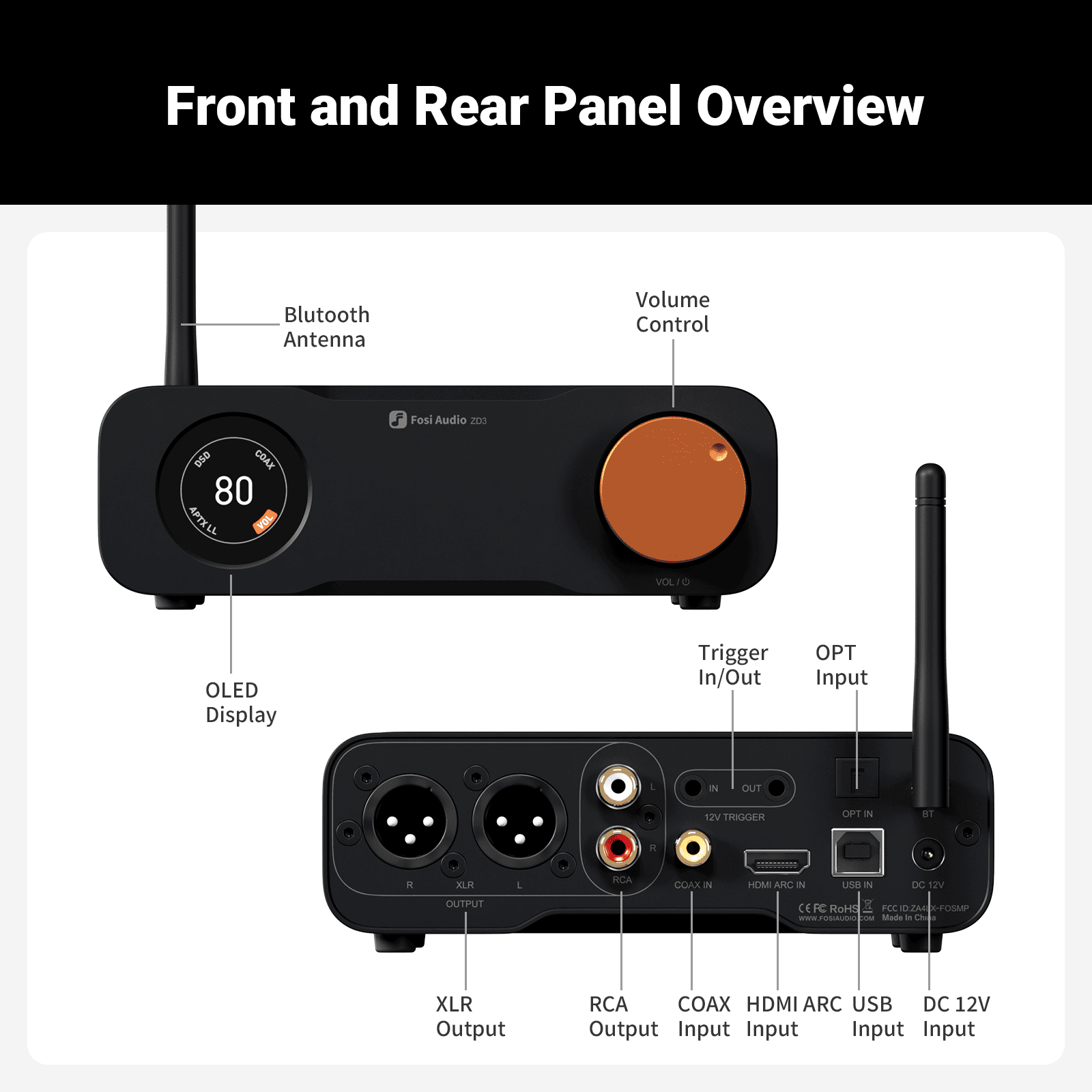

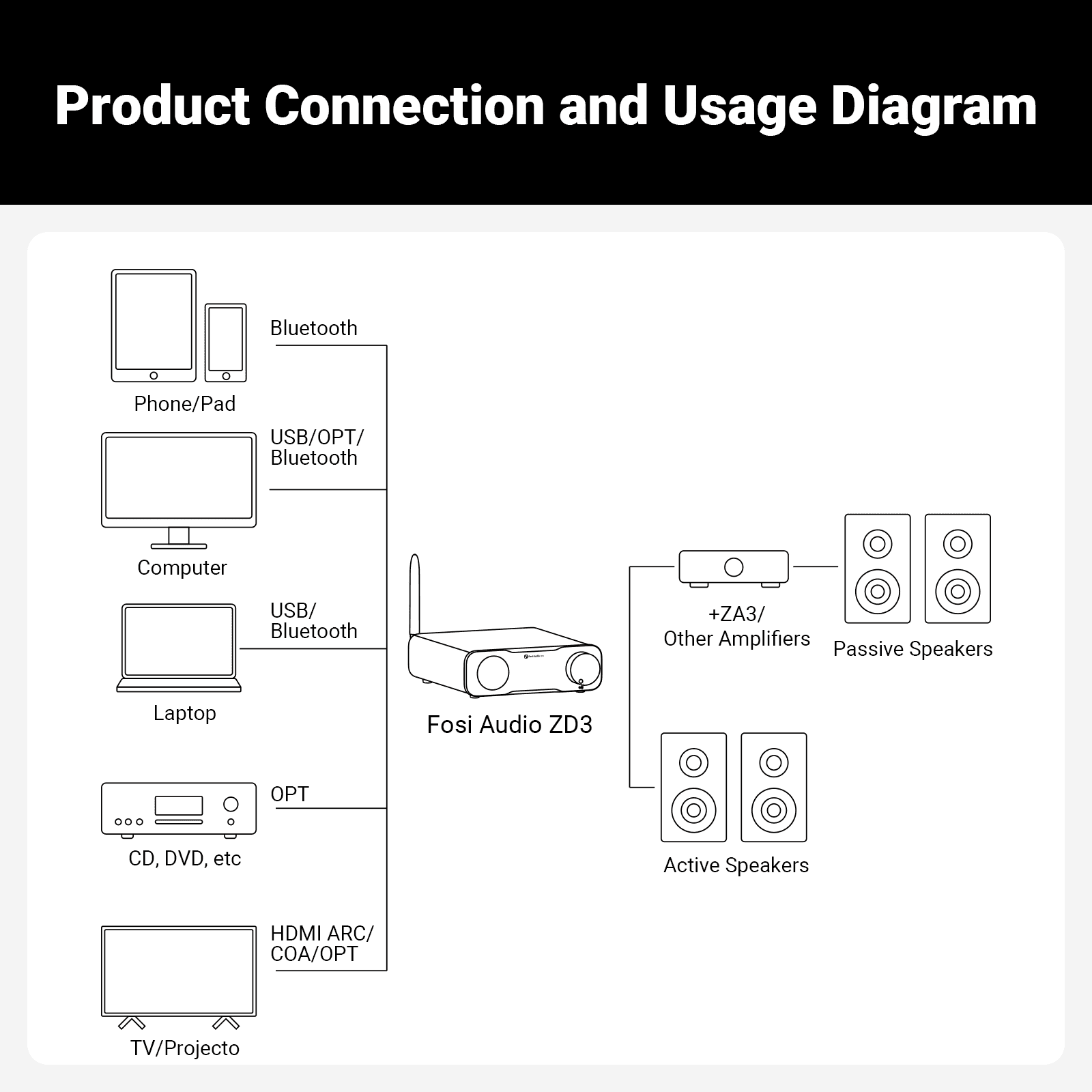

- Versatile & Flexible: The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios
- Ease of Use: The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience
- Family Design: Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system
- Note: When the ZD3 is used with an LG TV, a bug in the LG TV system may cause issues with the HDMI-CEC function. Specifically, after turning off the TV with the power button or remote control, both the TV and ZD3 may automatically power back on after a short time. If you are using an LG TV, we recommend disabling the HDMI-CEC function. We are working hard to resolve this issue and sincerely apologize for any inconvenience caused. Thank you for your understanding
